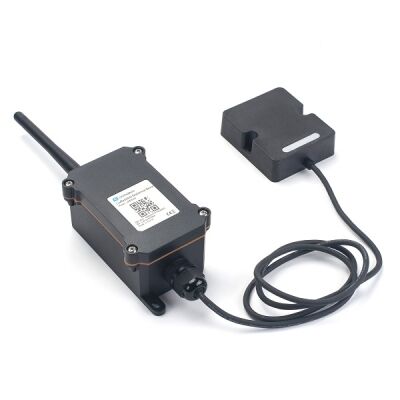

Dragino LMDS200 LoRaWAN Microwave Radar Distance Detection Sensor
The Dragino LMDS200 is a long-range LoRaWAN sensor that uses 24GHz microwave radar technology to measure distances up to 20 meters. Designed for non-contact measurement of solid or liquid surfaces, it delivers accurate readings even in dusty, wet, or reflective environments. The device is powered by an 8500mAh battery and operates reliably in extreme temperatures, thanks to its rugged IP66 enclosure.
This sensor is ideal for industrial or municipal use cases such as monitoring the level of grain in silos, liquid in tanks, or material piles in construction yards. It’s also a great choice for remote environmental monitoring where ultrasonic sensors may struggle due to condensation or acoustic noise.
Highlights
- Reliable in dusty, noisy, or reflective conditions
- 24GHz microwave radar sensor for accurate distance measurement
- 0.5 to 20 meter range suitable for large tanks or silos
- LoRaWAN v1.0.3 Class A compliant for long-range wireless communication
- IP66-rated housing for demanding environments
- Battery powered with up to 5-year life
| Field Name | Value |
|---|---|
| Manufacturer | Dragino |
| Device Name | LMDS200 |
| Model Number | LMDS200 |
| Communication Protocol | LoRaWAN v1.0.3 Class A |
| Power Source | 8500mAh Li-SOCI2 battery |
| Measurement Type | Distance |
| Measurement Range | 0.5 ~ 20 meters |
| Accuracy | Not specified |
| Operating Temperature Range | -40°C ~ 85°C |
| Ingress Protection (IP) Rating | IP66 |
| Battery Life | Up to 5 years |
| Mounting Options | Wall or surface mount |
| Frequency Band | EU868 / US915 / AS923 / AU915 / KR920 / IN865 / CN470 |
| Data Transmission Interval | Configurable |
| Antenna Type | External |
| Sensor Technology | 24GHz Microwave Radar |
| Operating Voltage | 3.2V |
| Interface Type | LoRaWAN |
| Display Type | None |
| Color | Gray |
